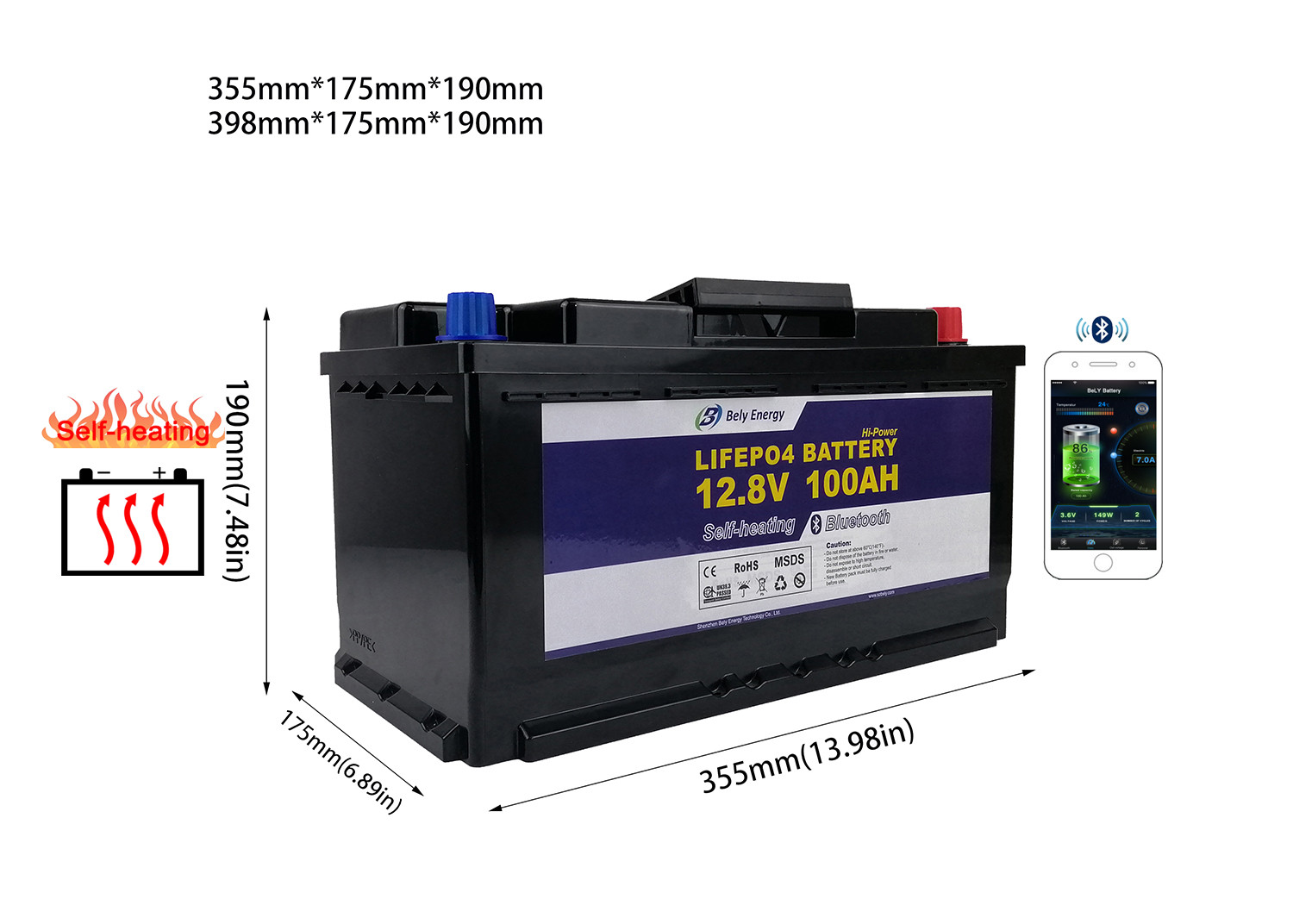

Best Lithium Ion Battery 12V 100Ah With Bluetooth Heating For
Motorhome , Communication Station
Description of LiFePO4 Battery
1. Very suitable for RV and replace the traditional lead acid
battery with battery size: 355mm x 175mm x 190mm.
2. More than 3000 cycles @ 90% DOD.
3. High discharging current capacity, working well with most of
inverters in the market.
4. Prismatic cells UL 1642& UN38.3 & ICE62619 certified, packs CE &
UN38.3 & MSDS.
5. Patent Bluetooth connection, enable IOS & Android APP to monitor
instant battery status.
6.Series & Parallel connections are available.
7.OEM & ODM service are availble.
Heating Function
Charging Heating When Temperture <-1℃ Even to -30℃
Heated to 5℃ and Charge Well
(Temperature can be preseted and customized)
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common
AGM, lead acid or GEL batteries. With optionally available round
poles can also use existing pole, terminals can be reused. An
exchange the battery holder or a change the loading structure is
not necessary.
Specification of Lifepo4 Battery 12v 100AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 100Ah/1280Wh |
| Physical | Dimension | 355mm x 175mm x 190mm |
| Weight | 12KGS |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V |
| Recommended Charging Current | 50A |
| Max. Charging Current | 80A |
| Max. Continuous Discharging Current | 100A |
| Peak Discharging Current (≤20 sec.) | 150A |
Others
| Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ |
| Storage Temperature Range | -20~60℃ |
| Cycle Life | ≥3000Cycles |
| Internal Impedance | ≤20mΩ |
| Battery Cells Type | Prismatic |
| Connector | Copper pillar |
| Material | ABS(anti-UV) |
Battery Management System(BMS)
BMS stands for "Battery Management System" - the brain of our deep
cycle lithium batteries. Our BMS protects your battery from most
common causes of battery failure, such as temperature volatility or
ground faults. The BMS regulates the amount of power taken out of
the battery and acts as a shut-off system to protect the li-ion
cells (and you) from unsafe operating conditions.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High cycles life time more than 3000 times @ 90% DOD
High max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
APPLICATION AREAS
Suitable for RV, Caravan, Marine, Camper, Electric scooter, Golf
Carts, Power wheels, Trolling motor, Tool trailer, Backup power
supply, Solar, off-grid, etc.
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and
safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile!
Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with
reversed polarity.
Should the battery be connected incorrectly, the BMS electronics
will be irreparably damaged and must be replaced with a new BMS
board. This is not a warranty case.
Important instructions
Do not open the LiFePO4 battery without consulting the dealer.
Unauthorized opening of the battery voids the manufacturer's
warranty.
▪ Only use the battery for the application for which it is
intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections
to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified
specialists.
▪ Do not expose to permanent direct sunlight. Protect from the
effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage
of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc.
(Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery
and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working
temperature and the charge and discharge rate differ from the
nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need
series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from
different manufacturers or different types should not be
interconnected.
Caution:
- Do not store at above 60℃(140℉);
- Do not dispose of the battery in fire or water;
- Do not expose to high temperature, disassemble or short circuit;
- New Battery pack must be fully charged before use.
