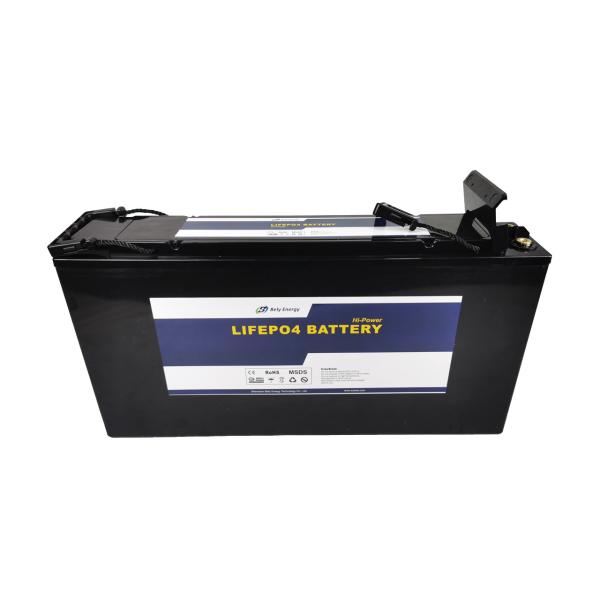

2021 new technology Telecom Lithium Battery 24V LiFePO4 Battery 24V 60Ah catl battery

For Communication station / Marine

Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.

Information

BATTERY MANAGEMENT SYSTEM

The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.

Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.

EASY REPLACEMENT THE EXISTING BATTERY

The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.

BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

PERFORMANCE / EFFICIENCY

A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.

Specification of Lifepo4 Battery 24v 60AH

The terminal has a removable waterproof cover to protect it from water on rainy days, and easy to stack.

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.

APPLICATION AREAS

The areas of application of this battery are specifically for the stationary or mobile area.

1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.

2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.

3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric wheelchair, power tools, electric scooter,emergency light,etc

Packaging & Delivery

Packaging Details 1pcs/carton box

Port: Shenzhen (Yantian/Shekou/Chiwan) or Hong Kong

Strong and protective package way will protect each battery well.

LiFePO4 Battery Performance and Test Conditions

1. Standard test conditions

Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.

2. Standard Charge/Discharge

Standard Charge: 0.2C

Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.

Standard Discharge: 0.2C

Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C

Our Services & Strength

Certificates approve qualified production and good quality products

FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.

Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.

Q6. How about warranty?

A. 2 years warranty. Enable to prolong.

Bely, a professional company is specialized in lithium battery cells and battery module pack that integrates R&D, production, sales and relevant services. Sales team is located in Shenzhen China. We own two battery cells outsourcing production bases in Shandong and own our battery packing factory in Dongguan.

There are more than 10 experienced engineers who are in lithium battery industry and BMS industry for more than 15 years. Core solutions are developed by ourselves and we can develop according to customers' requirements for BMS function, pack size and capacity customization. Now Bely's lithium batteries are widely used in many area.
Bely has passed ISO9001:2015 quality system certificate. Almost all batteries have passed CE, UN38.3, MSDS certificates and approvals. For other certificates required by the customers, Bely can assist to pass with our reliable labs.
With the backup of strong R&D team, the high efficiency management, the rich manufacture experience, the advanced production technology and equipment, Bely has developed rapidly to become the high quality lithium battery pack manufacturer.
Bely has been constantly transcending itself, creating customer value, integrating industry resources, activating business organization, actuating the industrial transformation and developing its position in international battery industry.
Bely always provides the professional service and good quality products to the customers all over the world. Bely is committed to "Enjoy the life with Bely energy!"
