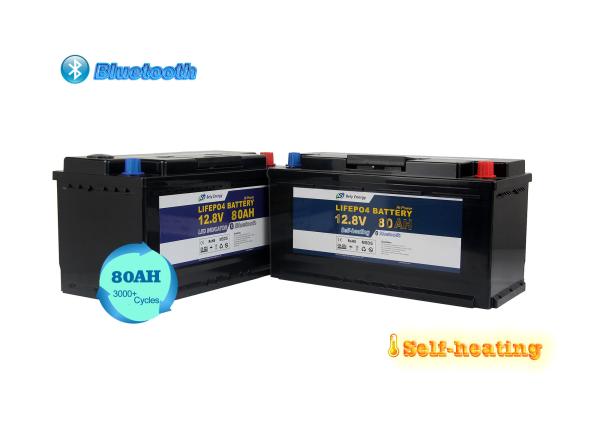

12V 80Ah Iron Phosphate Lithium Battery With Bluetooth Heating For
Camping Car , Home Storage , Marine
Description of LiFePO4 Battery
Lithium - lron - Phosphate (LiFePO4) battery offers a higher
charge/discharge cycles, about 3,000 cycles at 90% DOD (depth of
discharge). LiFePO4 cathode is intrinsically safer than the LiCo02
or the manganese cathode. Our wide variety of standard and high
performance batteries ensure we have what you need, when you need
it.
Heating Function
Charging Heating When Temperture <-1℃ Even to -30℃
Heated to 5℃ and Charge Well
Period of warranty
The period warranty 24 months from the date of shipment. Maximum
guarantees to give a replacement in case of battery with defects
proven due to manufacturing process instead of the customer abuse
and misuse.
Safest & Highest-cycle
No leakage, harmful fumes, or potential threat of explosion,
LiFEPO4 battery has better thermal and chemical stability. Over
3000 cycles, also the cell is able to deliver virtually full power
until it is discharged without harming the battery.
Specification of Lifepo4 Battery 12v 80AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 80Ah/1024Wh |
| Physical | Dimension | 355mm x 175mm x 190mm |
| Weight | 10KGS |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V |
| Recommended Charging Current | 40A |
| Max. Charging Current | 80A |
| Max. Continuous Discharging Current | 80A |
| Others | Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ |
| Storage Temperature Range | -20~60℃ |
| Cycle Life | ≥3000Cycles |
| Internal Impedance | ≤20mΩ |
| Battery Cells Type | Prismatic |
| Connector | Copper pillar |
| Material | ABS(anti-UV) |
| Protection Class | IP65 |
Battery Management System(BMS)
BMS stands for "Battery Management System" - the brain of our deep
cycle lithium batteries. Our BMS protects your battery from most
common causes of battery failure, such as temperature volatility or
ground faults. The BMS regulates the amount of power taken out of
the battery and acts as a shut-off system to protect the li-ion
cells (and you) from unsafe operating conditions.
APPLICATION AREAS
Golf cart, UPS, Robot, Yachit, RV
EV, Street light, communication station, Home storage
Remote control cars, boat, aircraft, toys
Medical devices, equipment and portable equipment
Bluetooth, GPS, Wearable device, Power supply, Wireless
Electric drill, electric saw, lawn mower and so on.
Battery Benefits
Low self-discharge
Light weight
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High max continuous discharging current
One to one replaceable with lead acid battery
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and
safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile!
Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with
reversed polarity.
Should the battery be connected incorrectly, the BMS electronics
will be irreparably damaged and must be replaced with a new BMS
board. This is not a warranty case.
Important instructions
Do not open the LiFePO4 battery without consulting the dealer.
Unauthorized opening of the battery voids the manufacturer's
warranty.
▪ Only use the battery for the application for which it is
intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections
to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified
specialists.
▪ Do not expose to permanent direct sunlight. Protect from the
effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage
of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc.
(Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery
and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working
temperature and the charge and discharge rate differ from the
nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need
series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from
different manufacturers or different types should not be
interconnected.
Caution
- Do not store at above 60℃(140℉);
- Do not dispose of the battery in fire or water;
- Do not expose to high temperature, disassemble or short circuit;
- New Battery pack must be fully charged before use.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different
part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for
sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly,
we quote according to your requirements or our suggestions. Thirdly
customer confirms the samples and places a deposit for formal
order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty.
