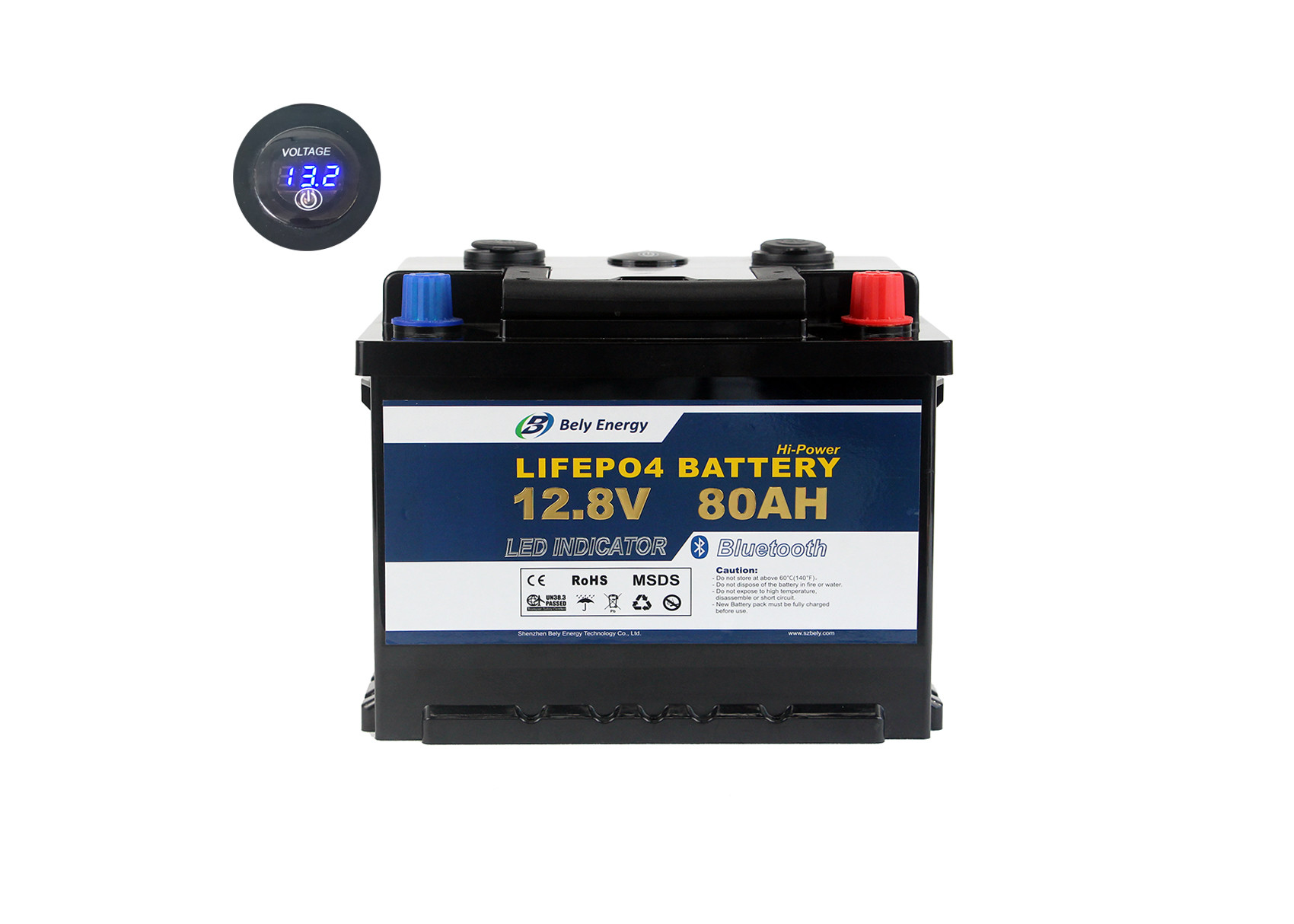

2 Years Warranty 12V 80Ah Teslar Battery With LED Display For Home
Solar Energy Storage System , Leisure
Description of LiFePO4 Battery
Lithium - lron - Phosphate (LiFePO4) battery offers a higher
charge/discharge cycles, about 3,000 cycles at 90% DOD (depth of
discharge). LiFePO4 cathode is intrinsically safer than the LiCo02
or the manganese cathode. Our wide variety of standard and high
performance batteries ensure we have what you need, when you need
it.
Period of Warranty
The period of warranty is 2 years from the date of shipment.
Maximum guarantees to give a replacement in case of battery with
defects proven due to manufacturing process instead of the customer
abuse and misuse.
Safest & Highest-cycle
No leakage, harmful fumes, or potential threat of explosion,
LiFEPO4 battery has better thermal and chemical stability. Over
3000 cycles, also the cell is able to deliver virtually full power
until it is discharged without harming the battery.
Specification of Lifepo4 Battery 12v 80AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 80Ah/1024Wh |
| Physical | Dimension | 244mm x 176mm x 190mm |
| Weight | 10KGS |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V |
| Recommended Charging Current | 40A |
| Max. Charging Current | 80A |
| Max. Continuous Discharging current | 80A |
Others
| Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ |
| Storage Temperature Range | -20~60℃ |
| Cycle Life | ≥3000Cycles |
| Internal Impedance | ≤20mΩ |
| Protection Class | IP65 |
| Battery Cells Type | Prismatic |
| Connector | Copper pillar |
| Material | ABS(anti-UV) |
Battery Management System(BMS)
Passive balancing (active balance optional), low voltage cutoff,
high voltage cutoff, short circuit protection and temperature
protection for increased performance and longer life. Besides,
Bluetooth function for option that enables to monitor battery
status, such as, voltage, capacity and so on.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
APPLICATION AREAS
Medical devices, equipment and portable equipment
Motohomes, caravans and RV
Photovoltaics, solar systems and renewable energies
High performance traction/storage battery
Fishing, electric boat motors and sonar
Mobile power supply, camping and leisure
Emergency power supply/UPS
Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for
transport, these should always be followed (transportation code
UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃.
During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active
so that it always works maximum.
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and
safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile!
Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with
reversed polarity.
Should the battery be connected incorrectly, the BMS electronics
will be irreparably damaged and must be replaced with a new BMS
board. This is not a warranty case.
Important instructions
Do not open the LiFePO4 battery without consulting the dealer.
Unauthorized opening of the battery voids the manufacturer's
warranty.
▪ Only use the battery for the application for which it is
intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections
to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified
specialists.
▪ Do not expose to permanent direct sunlight. Protect from the
effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage
of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc.
(Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery
and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working
temperature and the charge and discharge rate differ from the
nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need
series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from
different manufacturers or different types should not be
interconnected.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different
part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for
sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly,
we quote according to your requirements or our suggestions. Thirdly
customer confirms the samples and places a deposit for formal
order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty.
