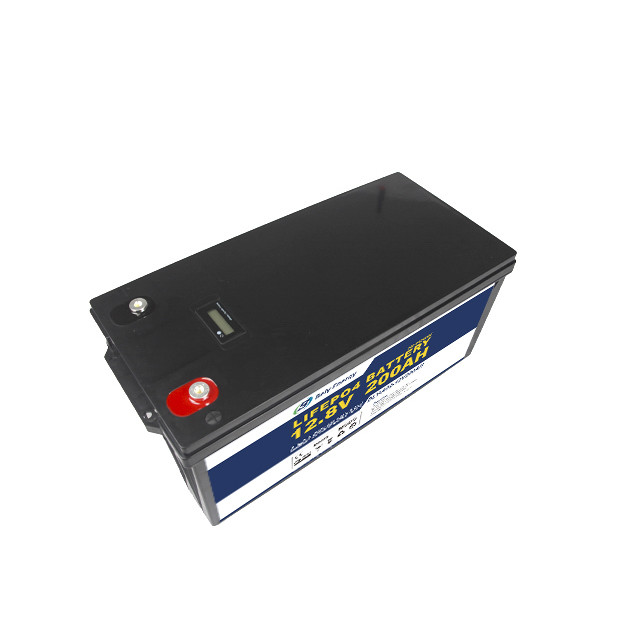

5000 Cycle Grade A Lifepo4 Cell 12V 300Ah RV Lithium Battery With
LED For Solar Power/ Camping Caravan / Boat
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium
batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid
battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80%
DOD (depth of discharge). LiFePO4 cathode is intrinsically safer
than the LiCo02 or the manganese cathode. Our wide variety of
standard and high performance batteries ensure we have what you
need, when you need it.
| Name | 12V 300Ah LiFePO4 Battery | Application | Golf Cart, UPS, Street Light, Solar Panel, Yacht/Marine, RV,
E-bike, Robot, Camping Car, ect. |
| Style | RV Lithium Battery | Color | Black and Customized |
| OEM/ODM | Accepatable | Battery Cells Type | Prismatic |
| Prismatic cells UL1642& UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS |
Key Features :
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer
float/calendar life than lead acid battery , helping to minimize
replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A "
drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge
rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion
or combustion due to high impact overcharging or short circuit
situation
General Information
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common
AGM, lead acid or GEL batteries. With optionally available round
poles can also use existing pole, terminals can be reused. An
exchange the battery holder or a change the loading structure is
not necessary
BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery
is fully charged.
PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available
directly to save. A 100% utilization of the existing capacity takes
place with the same output voltage.
BMS Protections
Bely function for cells Over temperature protection Short-circuit
protection Over-current protection Over-voltage protection
Over-discharge protection
Manual measurement will have an error of about 2-3cm
1. Battery Specification
| Specification | Parameter |
Nominal Voltage | 12.8V |
Nominal Capacity | 300Ah/2560Wh |
Size/mm | 526mm x 235mm x 237mm |
Net Weight | 32.5kgs |
Working Voltage Range | 10-14.6V |
Charging mode | CCCV/IU |
| End of Charge Voltage | 14.4~14.6V |
| Recommended Charging Current | 80A |
| Max. Charging Current | 150A |
| Recommended Max. Continuous Discharging Current | 120A |
| Max. Continuous Discharging Current | 150A (Less than 25 mins) |
| Peak Discharging Current (≤20 sec.) | 200A |
| BMS (Battery Management System) | Integrated & inbuilt in the battery |
| Monitor | LED Display |
| Application / Interconnection | Parallel Connection |
| Charging Temperature Range | 0～55℃ |
| Discharging Temperature Range | -20~60℃ |
| Storage Temperature Range | -20~60℃ |
| Terminal | Protruding Copper Pillar |
| Internal Impedance | ≤20mΩ |
| Series & Parallel connections | Available |
| Life Time Designed@+25℃ | 10 years |
| Protection Class | IP65 |
| Warranty | 2 years Warranty time prolong from 2 years to 5 years: Price increase 20% Warranty time prolong from 2 years to 7 years: Price increase 35% |
2. Application
1. Back-up System and UPS: CATV system / Computer Server Center /
Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) /
Community and Family / RV Motorhome / Golf Carts Battery / Boat
Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS,
Mining Light/ Torch / LED Light / Emergency Light / LED Backup /
Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf
cart, Solar energy storage system, electric bicycle, electric bike,
electric wheelchair, power tools, electric scooter,emergency
light,etc
3. Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for
transport, these should always be followed (transportation code
UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃.
During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active
so that it always works maximum
Why Choose US:
1. We offer one-stop power solutions, which saves design time and
cost for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers'
competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
4. Experienced R&D team, be customer's professional power
solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
