High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
Information
1.1 EASY REPLACEMENT THE EXISTING BATTERY

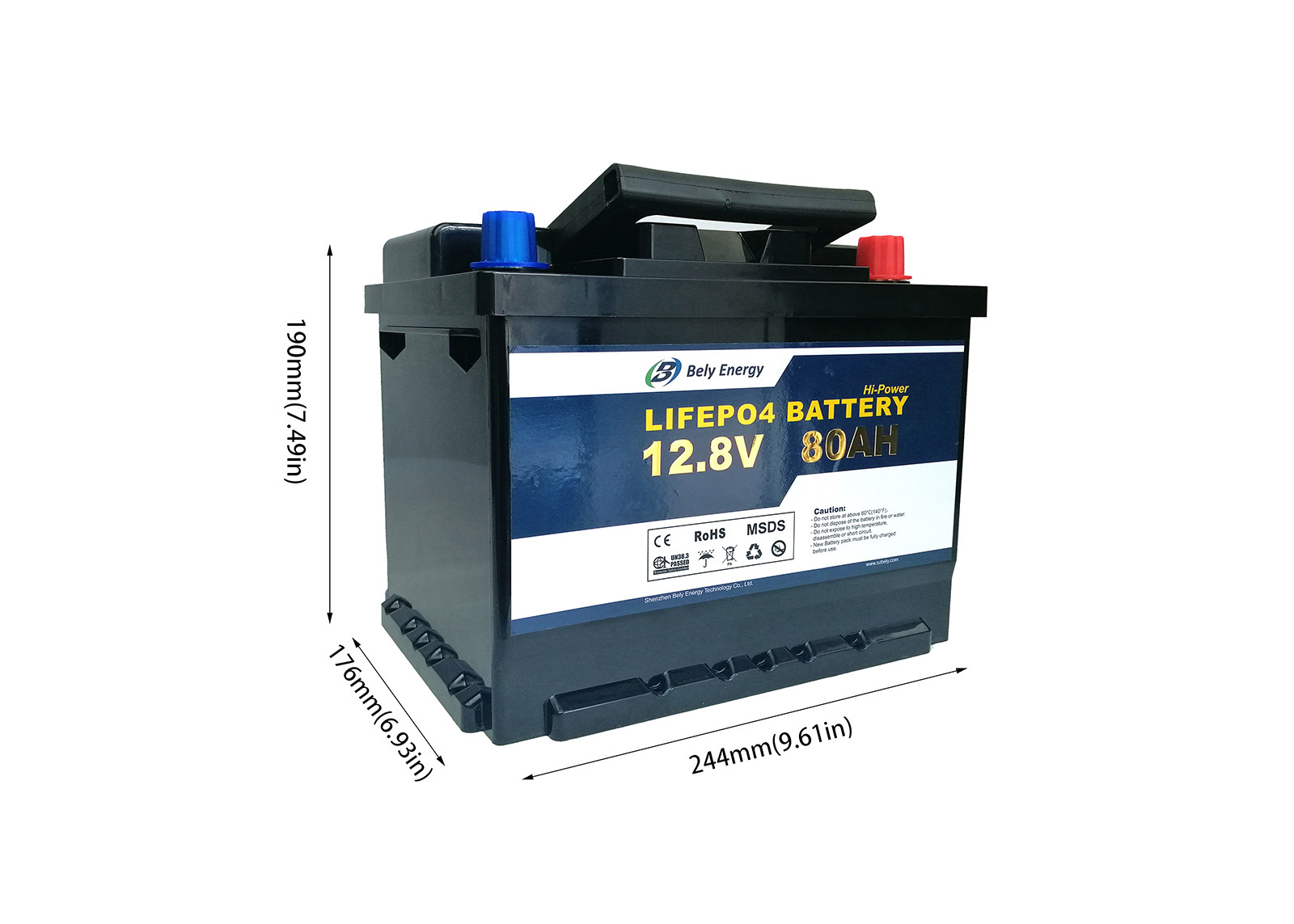

The dimensions of the housing are identical with the most common
AGM, lead acid or GEL batteries. With optionally available round
poles can also use existing pole, terminals can be reused. An
exchange the battery holder or a change the loading structure is
not necessary.
1.2 BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery
is fully charged
1.3 PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available
directly to save. A 100% utilization of the existing capacity takes
place with the same output voltage.
Application
Motohomes, caravans and RV
Photovoltaics, solar systems and renewable energies
High performance traction/storage battery
Fishing, electric boat motors and sonar
Mobile power supply, camping and leisure
Emergency power supply/UPS
Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for
transport, these should always be followed (transportation code
UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃.
During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active
so that it always works maximum
Important instructions
Do not open the LiFePO4 battery without consulting the dealer.
Unauthorized opening of the battery voids the manufacturer's
warranty.
▪ Only use the battery for the application for which it is
intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections
to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified
specialists.
▪ Do not expose to permanent direct sunlight. Protect from the
effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage
of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc.
(Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery
and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working
temperature and the charge and discharge rate differ from the
nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need
series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from
different manufacturers or different types should not be
interconnected.
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and
safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile!
Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with
reversed polarity.
Should the battery be connected incorrectly, the BMS electronics
will be irreparably damaged and must be replaced with a new BMS
board. This is not a warranty case.
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will
cause battery heat, get into fire or lose some functions and reduce
the life;
2. When the battery run out of power, please charge it within 15
days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe,
instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such
as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
