Specification of Lifepo4 Battery 12v 150AHBL
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 150Ah/1920Wh |
| Physical | Dimension | 355mm x 175mm x 190mm |
| Weight | 16.5KGS |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V |
| Recommended Charging Current | 60A |
| Max. Charging Current | 150A |
| Max. Continuous Discharging Current | 150A |
| Peak Discharging Current (≤20 sec.) | 200A |
| Others | Charging Temperature Range | 0~60℃ |
| Discharging Temperature Range | -20~60℃ |
| Storage Temperature Range | -10~45℃ |
| Cycle Life | ≥5000Cycles |
| Internal Impedance | ≤10mΩ |
| Color | Black or customized |
| Battery Cells Type | Prismatic |
| Connector | Copper pillar |
| Charging mode | CCCV/IU |
| Life Time Designed@+25℃ | 10 Years |
| Protection Class | IP65 |
Battery Management System(BMS)
Passive balancing (active balance optional ), low voltage cutoff,
high voltage cutoff, short circuit protection and temperature
protection for increased performance and longer life. Besides,
Bluetooth function for option that enables to monitor battery
status, such as, voltage, capacity and so on.
Bluetooth Function
Thanks to the integrated Bluetooth function, the battery status can
be easily monitored using a smartphone or tablet (Android & Apple
iOS). This eliminates the need for complicated wiring for a battery
monitor.
Self-heating Function
Integrated strong heating film with the highest possible
effectiveness and efficiency (extremely fast and completely even
heating of all cells). The integrated heating film starts at
temperatures below 0°C when a charging current 10A is applied. No
battery discharge due to the integrated heater.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it. Contact with our
sales team to get more informations about us and products.
LiFePO4 Batteries Benefits
High Efficiency
Bely Batteries provide 100% of their rated capacity regardless of
the rate of discharge, which mean we can discharge the battery
entirely and obtain thousands of cycles.

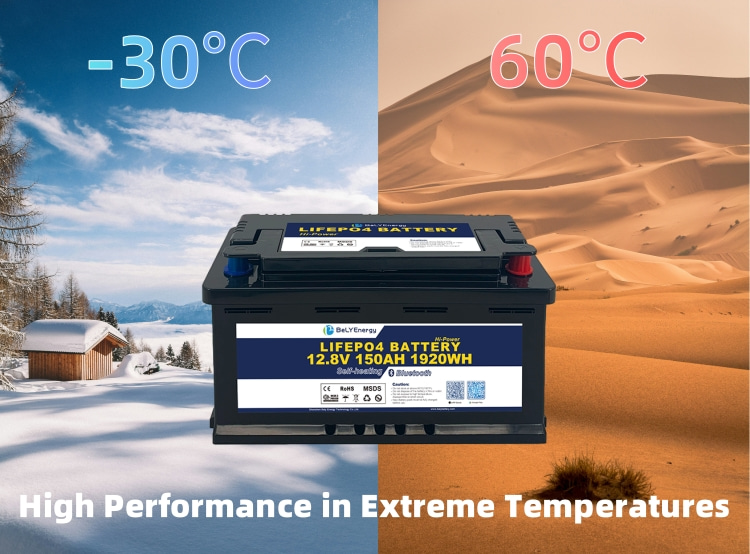

Temperature Tolerant
Bely batteries can handle a wide variety of conditions and are even
2.5x more efficient at low temperatures than lead-acid while being
able to safely operate up to 65°C.
Intelligent BMS Inbulit
The BMS permanently protects the individual cells and the entire
battery against over/under voltage, over/under temperature,
overload and short circuit (automatic shutdown without damage). The
BMS effectively prevents the battery from failing prematurely due
to external influences or incorrect use.
Eco-Friendly & Safe
Bely batteries are the ultimate clean energy. No gassing, no fumes,
and no pollution. Moreover, lithium batteries are made of recycled
materials, meaning they are disposable in an eco-friendly way.
Enjoy reliable power, while protecting the environment, using these
non-hazardous batteries.
Long Cycle Life
Bely batteries provide up to 10 times longer life than lead acid
batteries, and they still provide 80% of the rated capacity after
3,500 cycles without decreasing in performance . All of Bely
Batteries are back up with 5 years warranty.
Lightweight
Bely batteries are super lightweight due to using high energy
density new grade A prismatic cells. They are 60% lighter than lead
acid batteries, which is simple for moving and installing.
Easy Installation
Bely batteries are designed as a drop-in-replacement for lead acid
batteries. The dimension of our batteries are the same as the
dimension of lead acid batteries with much lighter weight.
Fast Charging
Bely batteries can recharge much faster than lead acid batteries,
which allow us to get reliable power quicker. Lithium battery is
recommended to recharge in 2 or more hours for longevity.
Low Self-Discharge Rate
Bely batteries have a low self-discharge rate of 3% a month and no
memory effects , which means that we can store the batteries for
extended periods without the need for frequent charging.
